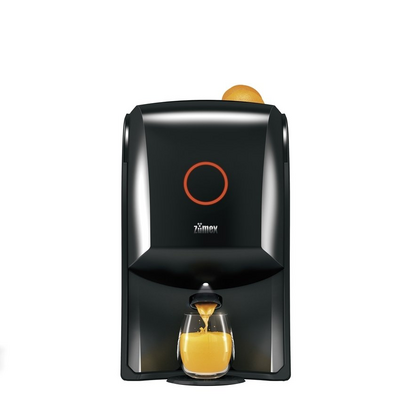

Soul Series 2

The most compact citrus juicer in the market, thanks to its innovative Conical System® for citrus squeezing

REQUEST INFORMATION

Soul Series 2

Small. Smart. Stylish

The juice world will change forever with the new Soul. Soul Series 2 offers a world of possibilities to design spaces that are looking for a different Juice Experience.

The first smart juicer

The first automatic juicer that provides information about the performance and productivity of your machine in real time.

– Control your business remotely

– Improved machine productivity

– Predictive maintenance

– Error alert and solution management

– Configurations

The new Soul Series 2 has arrived.
This is the start of a new future in which the maximum innovation and authentic style take their place in the minimum of spaces.

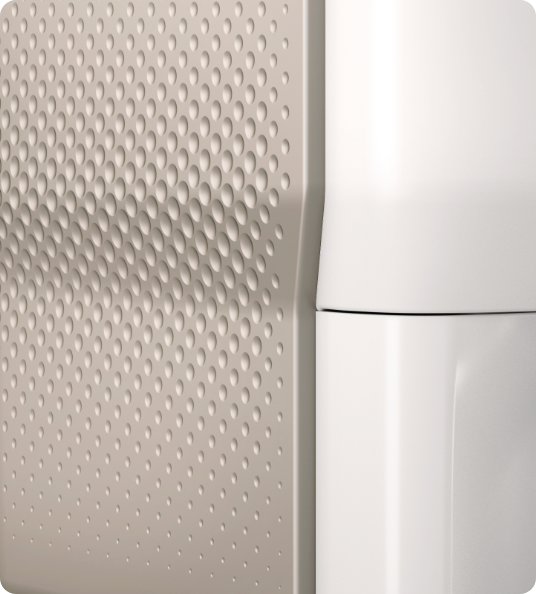

Small

The greatness of the smallest space

An incredibly compact machine that offers amazing capacity and speed.

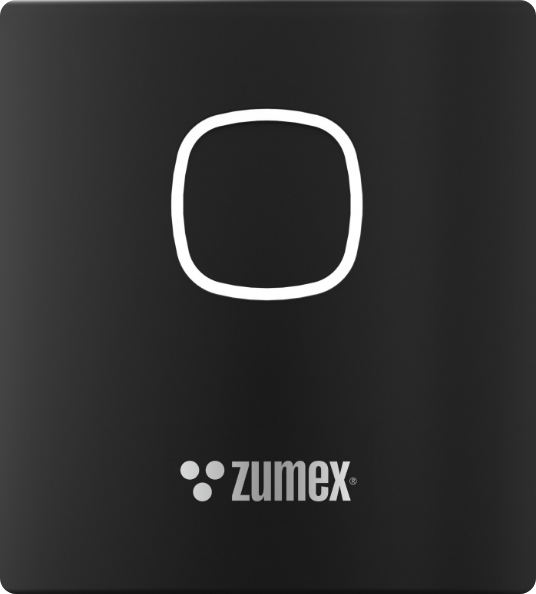

Smart

The first Smart Juicer

The first automatic juicer that provides information about the performance and productivity of your fleet of machines in real time.

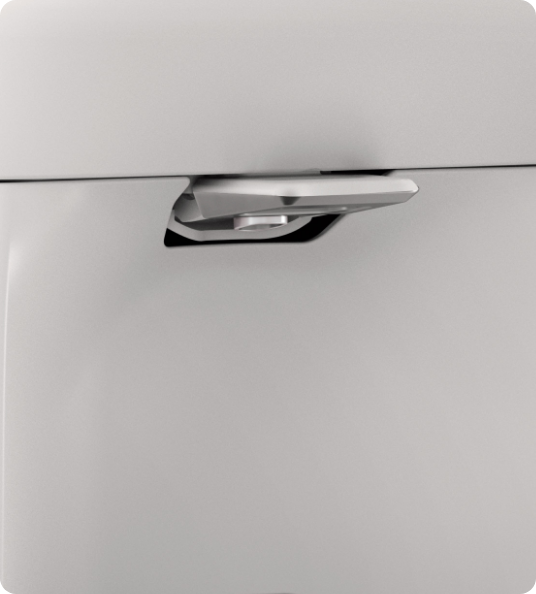

Stylish

Unique style for the coolest cafés and bars

Four models that reflect the latest trends.

Would you like more information?

For us too much is never enough

Learn more about Zumex’s most challenging project.

The Soul is inside

Our Conical System® has been designed to squeeze twice as fast.

Maximum hygiene thanks to our nanotechnology ASP®, based on silver ions that inhibits the growth of bacteria.
Extra effective and long-lasting protection.

Squeeze all citrus

With the Soul Series 2 squeezing kits, you can squeeze any citrus fruit ranging from 42 to 81 mm.

M Kit: small oranges or lemons 64 to 81 mm.
S Kit: lemons, limes or tangerines 45 to 65 mm.
XS Kit: limes 45 to 52 mm.

Far beyond juice

Cocktails, mocktails, pastries, dressings, sauces…
Maximum delicacy to obtain the highest performance from each citrus fruit.

A new universe to be explored

Coffee Shops, Healthy Restaurants, Iconic Bars, Cocktail Bars, Fast Good, Latin & Asian Restaurants, Bakeries, Patisseries, Chic Hotels, Airport Lounges, VIP Rooms at venues, Executive Offices…

And many more!

Evolving innovation.

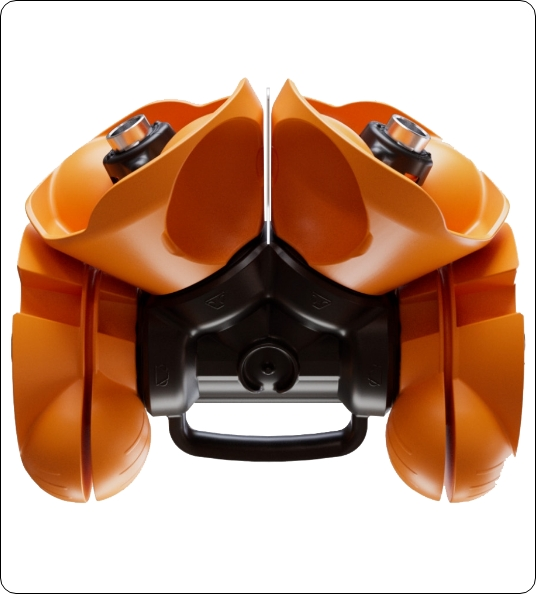

Conical System®
Soul Series 2
Ultra compact
1 juice in 10″

18 fruits per minute.

Soul Series 2
Ultra compact

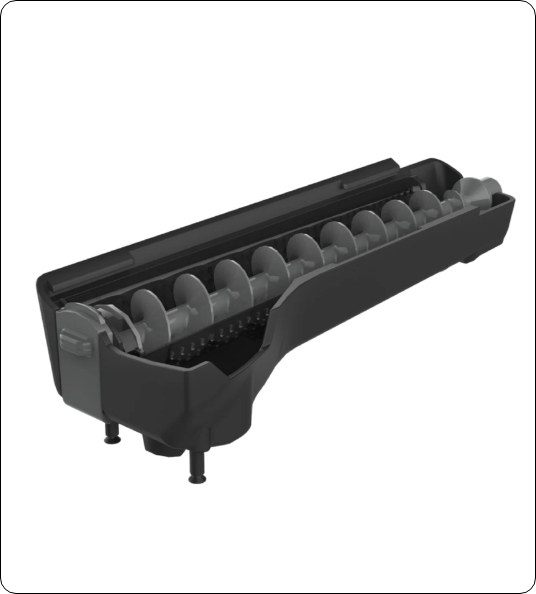

PulpOut System

Accesible without removing the squeezing unit.

Soul Series 2
Ultra Compact

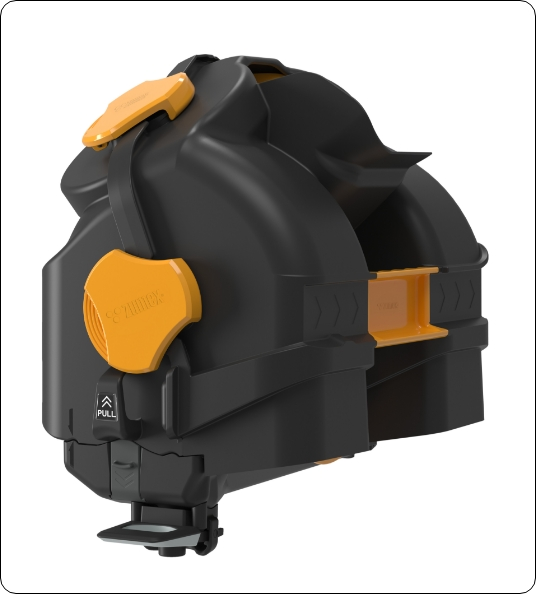

1Step Case Out

Easy and confortable squeezing unit removal.

Soul Series 2
Ultra compact
Easy to disassemble and clean

All parts in contact with the juice. 100% Diswasher Safe.

Four models
Black Smoke Grey
Black Natural Sand
White Smoke Grey
White Natural Sand
Soul Series 2 Limes

With XS Kit as standard

Soul Series 2 Limes is specially designed for
those places where citrus fruits, specially limes are the protagonists.

Soul Series 2
Accesories

Soul Series 2 includes accessories
to create the perfect atmosphere for
the best juice service.

  • Juice Kart Exclusive design with wheels, easy to move, to take your Soul wherever your business requires it.
  • Cup dispenser with napkin holder for a practical juicing experience
  • Cashless mode dispenser Module with touchless payment method. Pay and activate the service automatically.
  • Countertop Kit Non-stop juicing thanks to direct waste removal
  • Fruit basket Capacity more than 8 Kg of oranges.
Soul Series 2
Accesories

Soul Series 2 includes accessories
to create the perfect atmosphere for
the best juice service.

  • Juice Kart Exclusive design with wheels, easy to move, to take your Soul wherever your business requires it.
  • Cup dispenser with napkin holder for a practical juicing experience
  • Cashless mode dispenser Module with touchless payment method. Pay and activate the service automatically.
  • Countertop Kit Non-stop juicing thanks to direct waste removal
  • Fruit basket Capacity more than 8 Kg of oranges.
Soul Series 2
Accesories

Soul Series 2 includes accessories
to create the perfect atmosphere for
the best juice service.

  • Juice Kart Exclusive design with wheels, easy to move, to take your Soul wherever your business requires it.
  • Cup dispenser with napkin holder for a practical juicing experience
  • Cashless mode dispenser Module with touchless payment method. Pay and activate the service automatically.
  • Countertop Kit Non-stop juicing thanks to direct waste removal
  • Fruit basket Capacity more than 8 Kg of oranges.
Soul Series 2
Accesories

Soul Series 2 includes accessories
to create the perfect atmosphere for
the best juice service.

  • Juice Kart Exclusive design with wheels, easy to move, to take your Soul wherever your business requires it.
  • Cup dispenser with napkin holder for a practical juicing experience
  • Cashless mode dispenser Module with touchless payment method. Pay and activate the service automatically.
  • Countertop Kit Non-stop juicing thanks to direct waste removal
  • Fruit basket Capacity more than 8 Kg of oranges.
Soul Series 2
Accesories

Soul Series 2 includes accessories
to create the perfect atmosphere for
the best juice service.

  • Juice Kart Exclusive design with wheels, easy to move, to take your Soul wherever your business requires it.
  • Cup dispenser with napkin holder for a practical juicing experience
  • Cashless mode dispenser Module with touchless payment method. Pay and activate the service automatically.
  • Countertop Kit Non-stop juicing thanks to direct waste removal
  • Fruit basket Capacity more than 8 Kg of oranges.
Soul Series 2 Juice Kart

Take natural juice anywhere.

Room for everything you need

Cabinet with capacity to store up to 20 kg of oranges.

Integrated waste removal

35 Kg of fruit-14 L of juice capacity.

Quality, hygiene and trust

The Soul Series 2 juicer has the most demanding international certificates, ensuring maximum hygiene, safety and quality of materials.

RANGE Juicers
Soul Series 2
Accessories
Juice Kart
Juice Corner
Juice Kart
Exclusive design with wheels, easy to move, to take your Soul wherever your business requires it. It has an extra area for the storage of fruit, glasses, napkins, and other accessories. Width: 856 mm I Depth: 580.5 mm I Height: 939 mm
Premium Basket
Juice Corner
Premium Basket
Ideal for keeping your citrus fruit to hand. More than 8Kg of capacity.
Cup dispenser
Juice Corner
Cup dispenser
With serviette holder for an optimum experience
Cashless Mode Dispenser
Juice Corner
Cashless Mode Dispenser
Module with touchless payment method. Pay and activate the service automatically. 4 payment methods: Contactless (mobile or card), Chip, Magnetic Stripe, MIFARE.
Countertop Kit
Countertop
Countertop Kit
Non-Stop Juicing thanks to direct waste removal.
S Kit
Juicing systems
S Kit
Suitable for fruit with diameters ranging from 45 to 65 mm. Try juicing lemons*, limes and tangerines to create zesty new juice combinations. *See technical features
M Kit
Juicing systems
M Kit
Suitable for fruit with diameters ranging from 64 to 81 mm. Try juicing lemons* and oranges to create zesty new juice combinations. *See technical features
XS Kit
Juicing systems
XS Kit
Squeezing system for fruit with diameters between 42 mm and 52 mm. The best solution for squeezing limes.
Discover all
accessories
Juicers
Soul Series 2
Dimensions
Width 300 mm
Depth 480 mm
Height 537 mm
Net weight
32 kg | 71 lb
Colours
The most authentic style
Black Smoke Grey
Black Natural Sand
White Smoke Grey
White Natural Sand
Special Edition. Black Light Green
Accessories
Discover all accessories
JUICE KART
CASHLESS MODE DISPENSER
PREMIUM BASKET
COUNTERTOP KIT
Technical
features
Fruits per minute

M/S KIT: 18 fruits /min
XS KIT: 36 fruits /min

Feeder capacity

3-6 oranges
7-8 limes

Fruit diameter

Kit M: 64-81 mm

Kit S: 45-65 mm

Kit XS: 42-52 mm

*It is recommended to squeeze a variety of lemons with rounded and thin skin. Examples: Eureka, Lisbon, Meyer.

Type of consumption

Medium

Up&Down Tap

Anti-drip and optimal flow

Energy consumption

3,4 A | 1,5 A

Power

100 w | 0,134 HP

Voltage

1000–240 V | 50–60 Hz

Connectivity

WiFi

Sound pressure level

Less than 60 dB

PulpOut System

Automatic pulp and seed removal

Conical Sytem®

The system moves the fruit until it is perfectly centered to ensure clean, accurate cutting, obtaining the maximum amount of juice and flavor from each piece of fruit

ASP® Antibacterial Technology

Food hygiene certified. Our silver ion-based antibacterial technology inhibits the growth of bacteria, ensuring long-lasting, extra efficient protection.

Waste removal management

7 L | 12-14 oranges

Cashless unit

Cashless payment method unit. Pay and activate the service automatically.
4 payment methods: contactless (phone or card), chip, magnetic band or MIFARE

Juice Kart

Width: 856 mm
Depth: 580.5 mm
Height: 939 mm

Colours
The most authentic style
Soul Series 2
Black Smoke Grey
Soul Series 2
Black Natural Sand
Soul Series 2
White Smoke Grey
Soul Series 2
White Natural Sand
Soul Series 2
Special Edition. Black Light Green
RANGE Juicers
Soul Series 2
Video Presentation
Video Presentation
watch video
Disassembly and Cleaning Guide
Disassembly and Cleaning Guide
watch video
Project
Project
watch video
Zumex ASP Video
Zumex ASP Video
watch video
Zumex Success Stories
Zumex Success Stories
watch video
Downloads

Soul Series 2 Brochure
Soul Series 2 User's Manual
Soul Series 2 Quick Start Guide
Citric Active Professional Cleaner
FAQs
You can solve any of your questions here

Oranges, tangerines, lemons and limes from 42 to 81mm. Check the specifications for lemons and available kits in the product datasheet.

We recommend cleaning the machine once or twice a day, depending on how much it is used. All the steps you need to follow are described in our cleaning instructions.

You can wash all the plastic parts of the juicing system in the dishwasher.

300 x 480 x 537 mm

The white light indicates the machine is ready for juicing; the flashing white light indicates the waste container or the upper lid are incorrectly positioned, or the front door is open; the orange light indicates the machine is squeezing correctly, and the flashing orange light indicates the machine is squeezing but it is necessary to empty the waste container, or the juicing system or the PulpOut System are blocked.

Some interesting accessories are available to create the perfect atmosphere for the best juice service: Juice Kart to serve juice wherever you need, standard glass dispenser or with Cashless module, countertop kit for continuous removal and fruit basket.

You will find it on a sticker underneath the machine. You must have this serial number to hand for any technical service queries. You will also need this number if you want to extend your warranty to five years on our website.
